Ballistic Helmet Mold
Compression mold application for ballistic helmet and safety product development, with engineering review based on customer drawings and material requirements.
Project Notes
- Designed for ballistic helmet and protective shell mold inquiries.
- Supports SMC/BMC/FRP material review, cavity planning, trial molding and product structure discussion.
- Focused on custom tooling development, mold trial support and stable forming for protective shell applications.
Basic Information
- Application: ballistic helmet shell
- Process: compression molding
- Material: SMC/BMC/FRP optional
- Quote basis: drawing or sample review
What this mold project needs to solve
A ballistic helmet shell mold needs to control shape accuracy, thickness distribution, surface condition and release performance. The mold must support stable forming while keeping the part structure consistent through repeated trials and production runs.
Shengqi reviews the helmet shell drawing or sample before mold design, including edge structure, reinforcement areas, target material, forming pressure, heating conditions and expected inspection standard.
For customers developing protective shell products, the project can start from a drawing, sample photo or physical sample. After the tooling direction is clear, Shengqi can support mold design, machining, assembly, trial molding and adjustment.
Key points reviewed before tooling
Shell Geometry and Thickness
Helmet shell molds need careful review of curved surfaces, edge lines, overlap areas and thickness control. These points affect forming quality, demolding and final part consistency.
Compression Mold Structure
The mold structure is planned around cavity strength, parting surface, guiding accuracy, heating layout and pressure stability for composite material forming.
Material and Forming Review
SMC, BMC and FRP material directions may require different flow, curing and temperature considerations. Shengqi can review the customer's material target before mold design.
Trial Mold Adjustment
Trial molding checks filling, surface quality, edge condition, release and dimensional stability. Mold adjustment is handled according to trial samples and approval feedback.
Information that helps Shengqi review the project
- Helmet shell drawing, sample photos or physical sample information
- Target material, thickness range and part weight if available
- Required surface, trimming, assembly or inspection requirements
- Expected production quantity and mold export requirements
- Whether trial samples or molded part production are needed

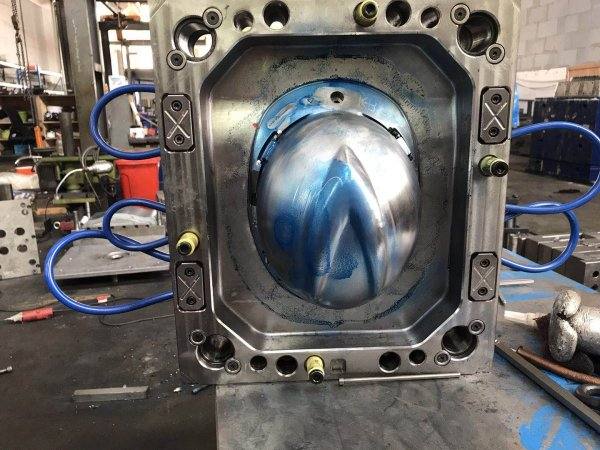

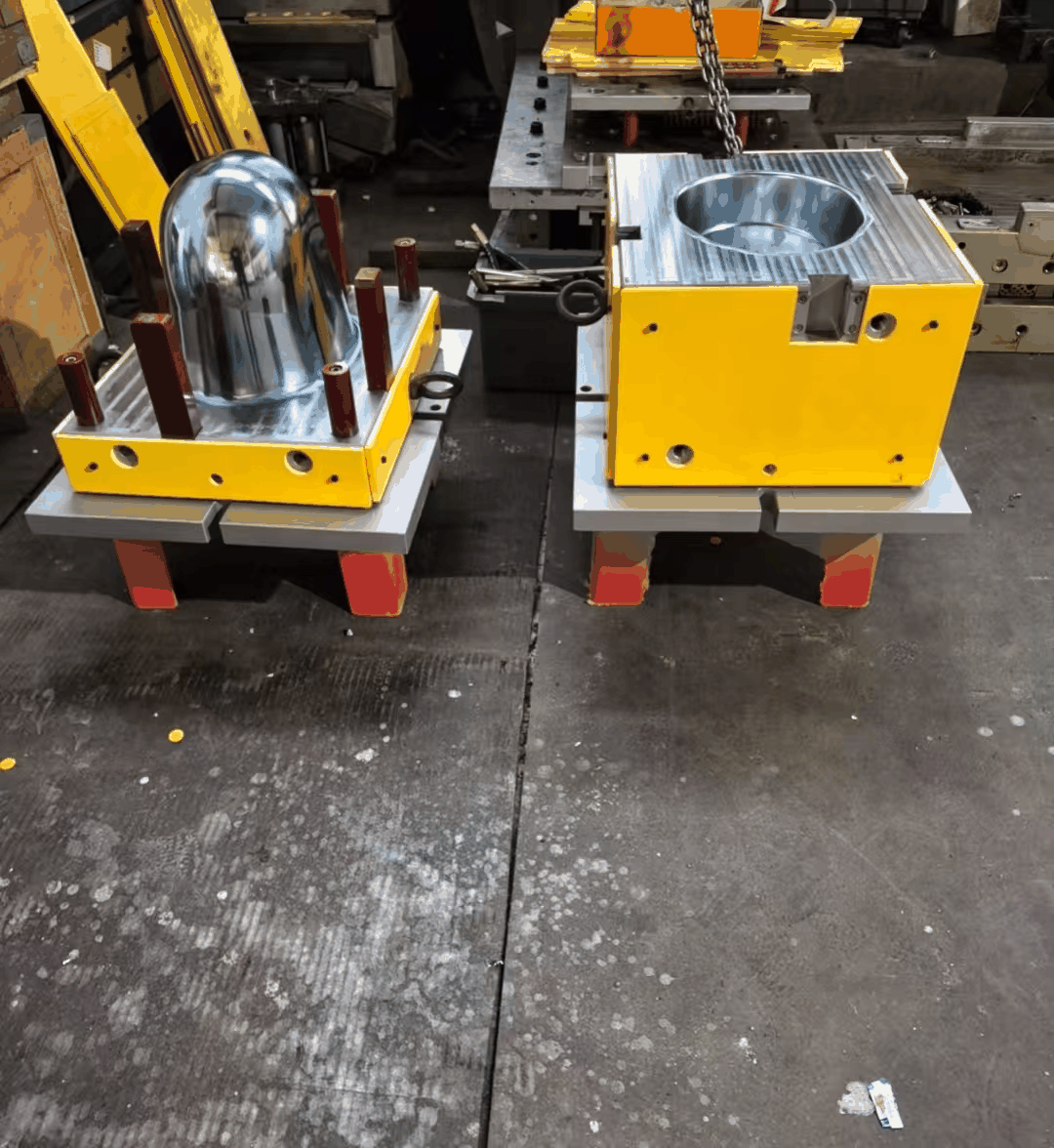

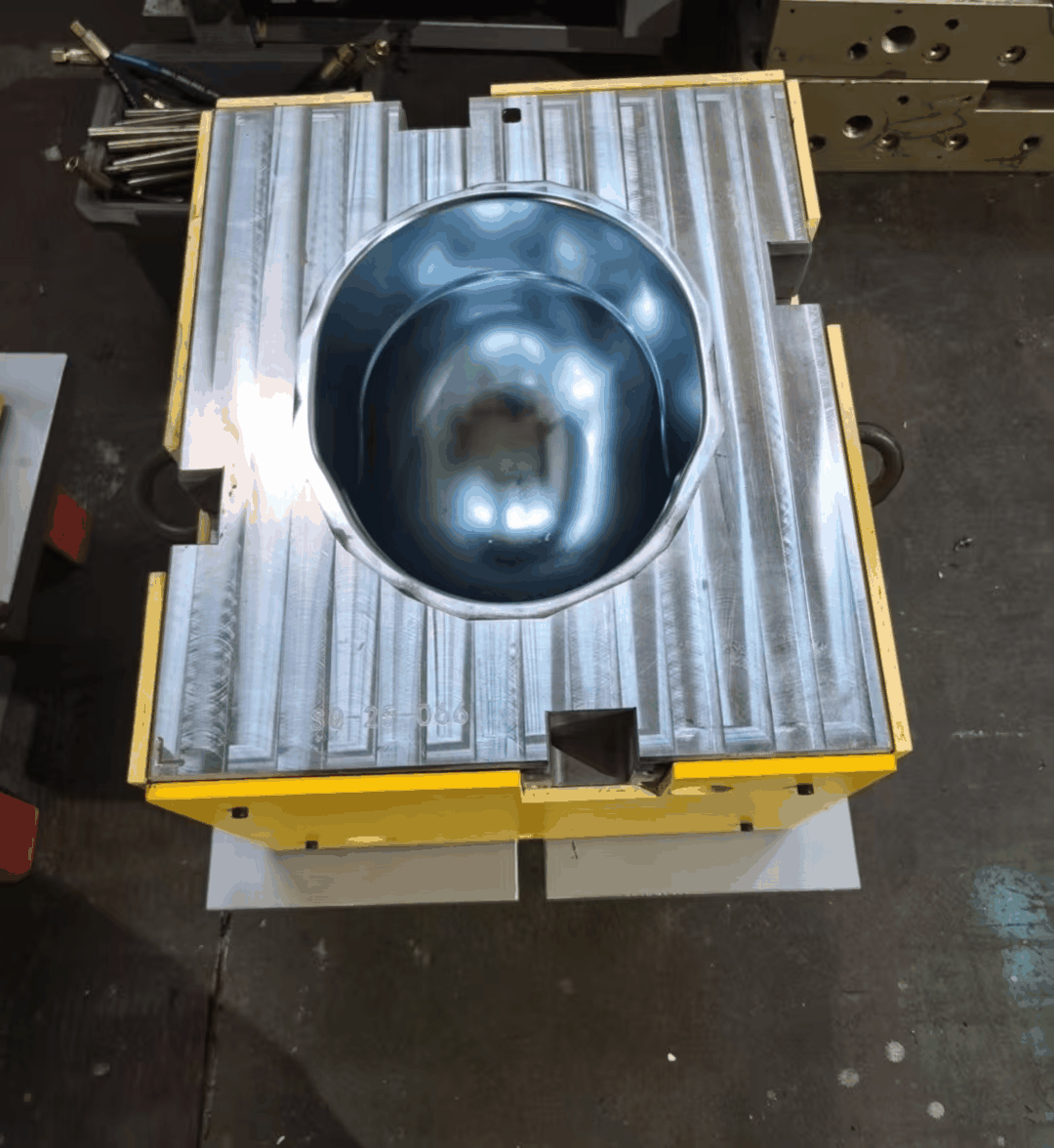

Related Images
