Ballistic Vest Related Mold
Custom mold development reference for protective equipment components that require stable forming, repeatable dimensions and careful material review.
Project Notes
- Used for protective equipment related molded parts where strength, shape stability and repeatable forming are important.
- The project review normally starts from product drawings, sample photos, part size, target material and expected production quantity.
- Shengqi can discuss compression mold structure, cavity layout, forming pressure, material flow and trial molding needs before quotation.
Basic Information
- Application: protective product component
- Process: compression molding
- Material: SMC/BMC/FRP optional
- Quote basis: drawing or sample review
What this mold project needs to solve
Protective equipment related parts often require more than a simple product shape. The mold needs to support stable forming, controlled thickness, reliable part release and repeatable production after approval.
For this type of project, Shengqi focuses on the tooling side: reviewing the part structure, checking the composite material direction, planning the mold cavity and supporting trial molding until the customer can confirm the part condition.
The final mold plan depends on the customer's drawing, sample, material specification, target production quantity and inspection requirements. If the customer needs molded parts after mold approval, Shengqi can also discuss production support.
Key points reviewed before tooling
Part Structure Review
Before mold design, the team checks wall thickness, ribs, edge shape, reinforcement areas, demolding direction and possible deformation risks. This helps reduce changes after tooling starts.
Composite Material Planning
SMC, BMC, DMC and FRP materials may have different flow, shrinkage and forming requirements. Material direction affects cavity design, pressure planning, heating and trial molding conditions.
Mold Strength and Stability
Protective product molds may need strong mold steel, stable alignment, accurate parting surfaces and reliable venting. The mold structure is reviewed according to the part size and forming pressure.
Trial Molding and Adjustment
Trial molding checks part filling, surface condition, thickness, edge quality and release performance. Mold adjustments can be made according to the trial result and customer approval standard.
Information that helps Shengqi review the project
- 3D drawing, 2D drawing or clear sample photos
- Part dimensions, thickness range and target weight if available
- Preferred material such as SMC, BMC, DMC or FRP
- Expected annual quantity and whether molded part production is needed
- Special inspection, assembly or surface requirements

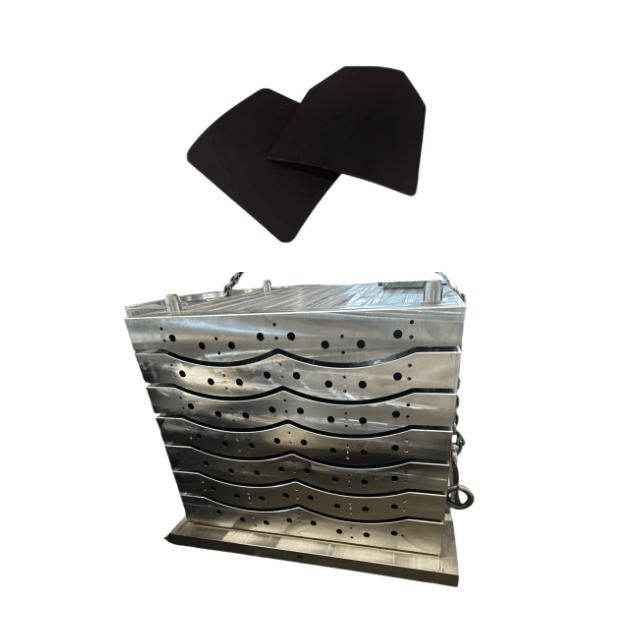

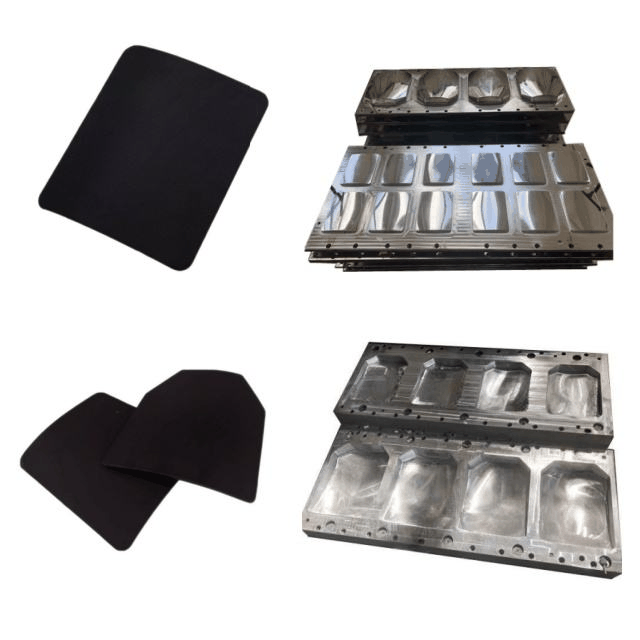

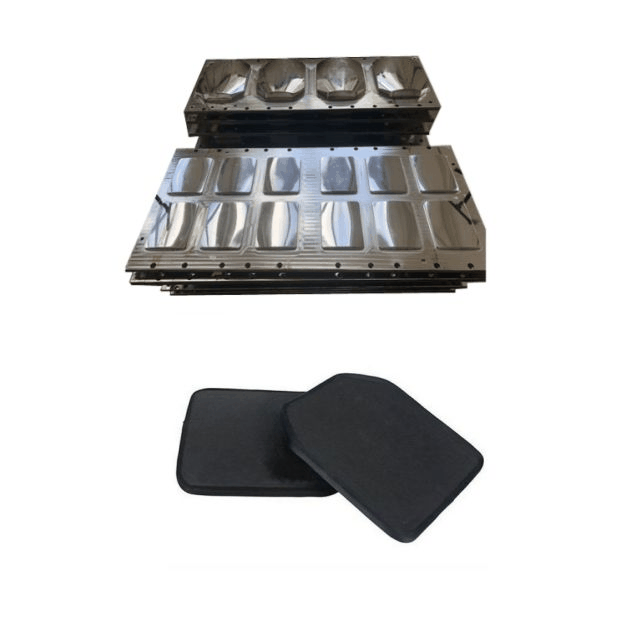

Related Images
