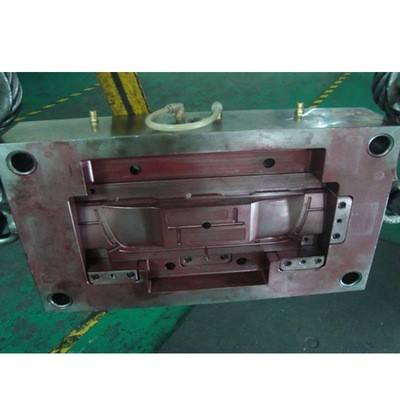

Automotive Plastic Parts Mold
Automotive plastic part mold example for custom tooling projects that require structure review, stable dimensions and production planning.
Project Notes
- Automotive mold projects usually need careful part structure review, assembly tolerance and surface requirement checks.
- Engineering review covers part material, mold steel, texture, insert requirements and inspection standards.
- Suitable for custom automotive plastic part molds based on drawings, samples or part development requirements.
Basic Information
- Application: automotive plastic part
- Process: injection molding
- Tolerance: project-based
- Surface: project-based
What this mold project needs to solve
Automotive plastic part molds usually require stronger engineering review than ordinary daily-use products. The mold must consider part fit, assembly position, surface texture, insert areas and dimensional stability during production.
Shengqi can review drawings or samples for automotive plastic components, then discuss mold structure, steel selection, gate position, cooling design and inspection points before quotation.
For custom automotive parts, early DFM feedback helps reduce tooling changes and improves the chance of successful trial molding and customer approval.
Key points reviewed before tooling
Assembly and Tolerance Review
Automotive parts often connect with other components. Mounting points, clips, holes, sealing edges and tolerance zones are reviewed before mold design.
Mold Steel and Structure
The mold plan considers production volume, surface requirement, insert design, slide or lifter structure and long-term wear resistance.
Surface and Texture Control
Visible parts may need texture, polishing, grain direction or color stability. These requirements affect mold finishing and trial approval standards.
Inspection and Trial Feedback
Trial samples are checked for fit, deformation, sink marks, flash, surface quality and dimensional stability. Adjustments are made according to inspection feedback.
Information that helps Shengqi review the project
- 2D/3D drawings, sample photos or existing part information
- Material requirement such as PP, ABS, PA, PC or reinforced plastic
- Assembly position, tolerance and inspection requirements
- Surface texture, color or visible appearance requirements
- Expected quantity, mold life requirement and delivery country
